Description:

Humegard™ is a unique product design effectively captures and retains gross pollutants form stormwater runoff. It comprises a specially shaped floating boom which diverts material entrained in stormwater flows from the separator into an adjacent holding chamber can be installed in variety drainage systems.

As a gross pollutant trap, the Humegard™ product is primarily focused on the capture and retention of the following pollutants:

  • Anthropogenic litter often classified as material greater than 5mm in size such as plastic bottles and containers, aluminum cans, paper and plastic wrapping materials, polystyrene, syringes, cigarette butts and other general refuse
  • Coarse inorganic sediment particles, classified as material greater than 75 - 150 in diameter
  • Organic material such as leaf litter and vegetation



Humegard™ installation




Gross pollutants retained in a Humegard™ storage chamber prior cleanout


 Product Benefits/Features



  • Large volumetric capacity
  • Very low hydraulic head loss, K value of 0.2(minor loss = 0.2V2/ 2g ) - reduced risk of upstream flooding
  • Low operational velocities means increased trapping performance
  • Easy, low cost maintenance and fast to install.
  • Effectively captures and retains gross pollutants
  • Flexible- can accommodate a variety of pipe and box culvert sizes
  • Performs in tidal zones

Uses/Applications

  • Urban residential subdivisions
  • Shopping centers & malls
  • Industrial operations(packaging & manufacturing)
  • Theme parks
  • Foreshore and beach front outlets, etc
  • Performs in tidal zones

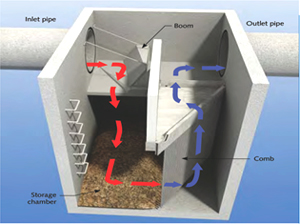

Illustrations and operation

During normal flow the angled boom directed all flow into storage chamber where the gross pollutants are separated and stored.

During peak flows, or under tidal influence, the angled boom floats and continues to direct all floating litter into the storage chamber. The regulated flow ensured previously trapped materials are retained.

Velocity through the device is controlled to prevent the blockage of the comb.

Design and sizing

Each design is specific to the site and we recommend that customers to contact our company for detailed sizing, however the preliminary purposes the table below contains indicatives sizes

Humegard™ Model

Pipe Diameter or Culvert Width (mm)

HG 12

300-375

HG 15

450-525

HG 18

525-600

HG 24

600

HG 27, 30

750

HG 30A, 35, 40

900

HG 35A, 40A

1050

HG 40B, 45

1200

HG 45A

1350

HG 50 & Larger

>1500

.
