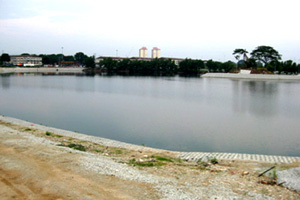

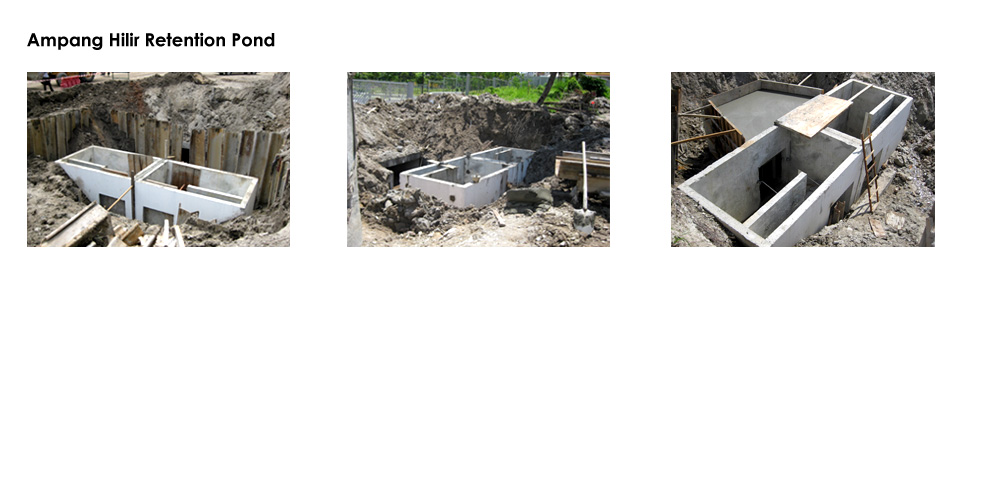

Ampang Hilir Retention Pond

 click for more picture

Descriptions:

Inlet 1
Pollutant Storage Volume = 22 m³
Design model = Two units (back-to-back) HG35A

Inlet 2
Pollutant Storage Volume = 22 m³
Design model = Two units (back-to-back) HG35A

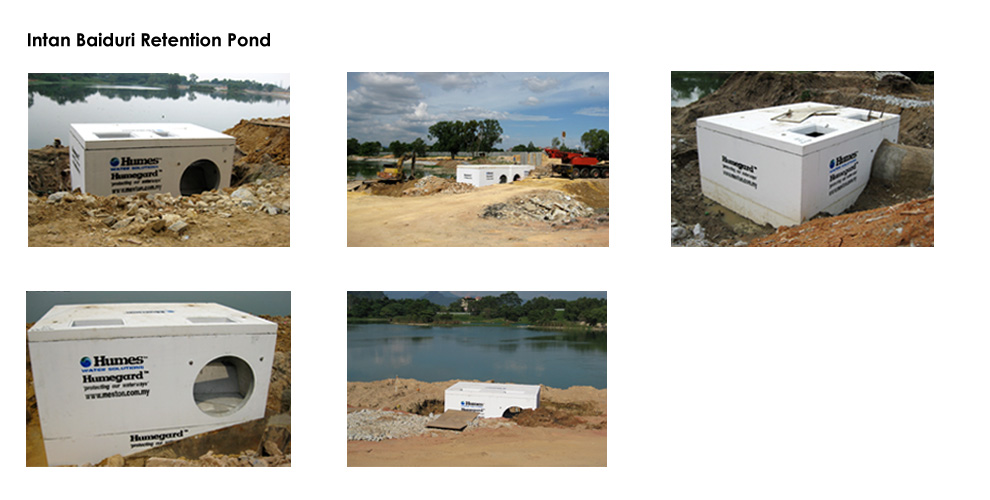

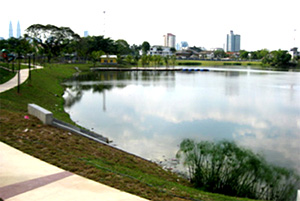

Intan Baiduri Retention Pond

 click for more picture

Descriptions:

Inlet 1
Pollutant Storage Volume  = 11 m³
Design model = HG30A

Inlet 2
Pollutant Storage Volume = 31 m³
Design model = HG55

Inlet 3
Pollutant Storage Volume        =   38 m³
Design model = Two units (back to back) HG45A

Inlet 4
Pollutant Storage Volume = 31 m³
Design model = HG55

Inlet 5
Pollutant Storage Volume = 104 m³
Design model = Two units (back-to-back) HG60

Inlet 6
Pollutant Storage Volume = 31 m³
Design model = HG55

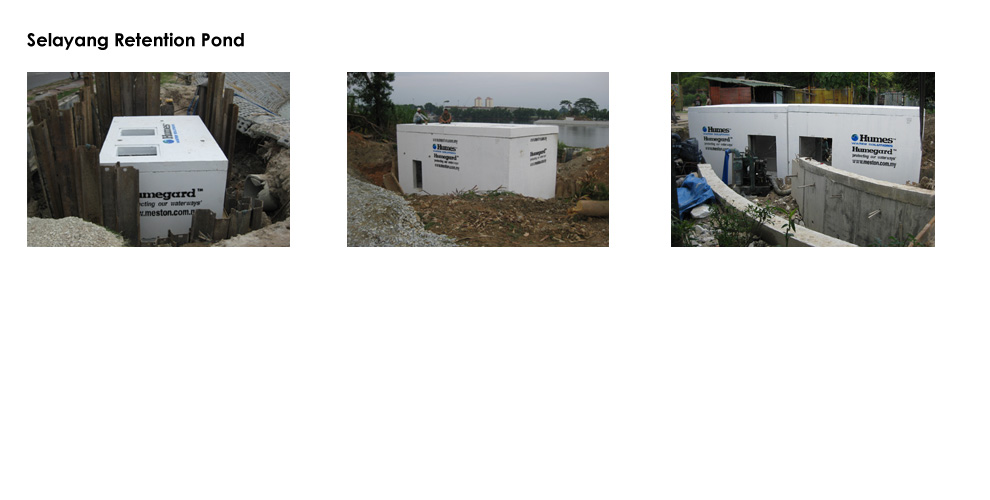

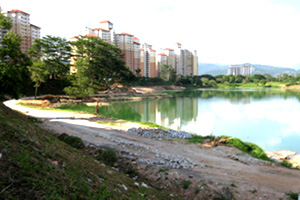

Selayang Retention Pond

 click for more picture


Descriptions:

Inlet 1
Pollutant Storage Volume = 11 m³
Design model = HG30A

Inlet 2
Pollutant Storage Volume = 52 m³
Design model = HG60

Inlet 3
Pollutant Storage Volume = 38 m³
Design model = Two units (back to back) HG45
